1. Intelligent design: universal matching, precise SOC, simple operation and maintenance, and multiple protection systems, low temperature charging and self-heating function
2. High reliability design: Integrated BMS design, long service life
3. High-density design: 4U high
| Product Spec | ||
|
Item |

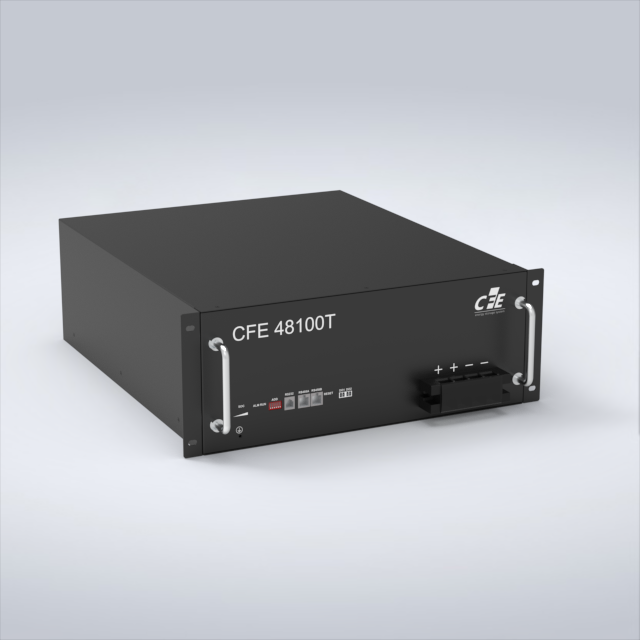

CFE-48100T |
|
|
1. Performance parameters |
||
|
Model |
16S |
|
|
Nominal Voltage |
51.2V | |
|
Nominal Capacity |
100Ah(0.2C to 40V at 25 ) | |
|
Operating Voltage Range |
42V-57.6V | |
|
Boost charge/Float charge voltage |
57.6V/54V | |
|
Charging current (current-limiting ) |
10A | |
|
Continuous Charge Current |
100A | |
|
Continuous Discharge Current |
100A | |
|
Discharge Cut-off Voltage |
42V | |
|
Dimensions |
Width |
442±1mm |
|
Height |
177±1mm | |
|
Depth |
530±1mm | |
|
Weight |
45±1kg |
|
|
2. Function Description |
||
|
Installation Method |
Rack Mounted | |
|
Communication Interface |
RS232/RS485*2/Dry Contact*2 | |
|
Indicator State |
ALM/RUN/SOC | |
|
Parallel Communication |
Maximum support for 15 sets of parallel | |
|
Terminal Stud |
M6 | |
|
Alarm and Protection |
Over voltage, under voltage, short circuit, overload, over current, over temperature, low temperature protection,etc. |
|
|
3. Working Condition |
||
|
Cooling Type |
Self-cooling | |
|
Altitude |
≤2000m | |
|
Humidity |
5%-95% | |
|
Operating Temperature |
Charge |
0ºC to 45ºC |
|
Discharge |
-5ºC to 50ºC | |
