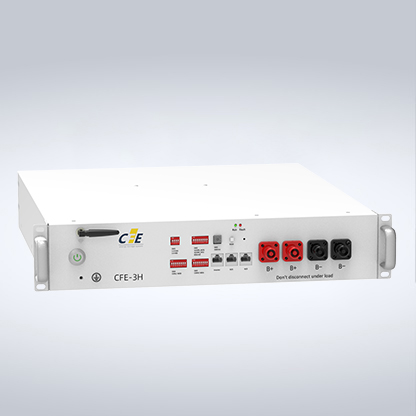

CFE-3H
1.Safety :
LFP(Lithium ion Phosphate) the highest safety
2.Up to 8 Series or Parallel :
Flexible to increase voltage capacity without any other equipments or settings
3.Cycle Life :
80% of initial capacity after 6000
4.WiFi & APP :
Integrated WiFi Modem OTA online upgrade convenient after-sales service
5.Installation :
Simple buckle fixing minimize the installation time and cost
6.High-precision SOC :
Accurate sampling of voltage and current SOC mathematic more accurate and never jump
Product Description
| Product Parameters | |
Basic Parameters | CFE 3H |
Nominal Voltage（V） | 51.2 |
Nominal Capacity（Wh） | 3072 |
Usable Capacity（Wh） | 2611 |
Dimension（mm） | 442*500*89 |
Weight（Kgs） | 25 |
Charge/Discharge Current（A） | 60(Recommend) |
60(Max) | |
100(Peak@15s) | |
Communication Port | CAN / RS485 |
Single string quantity（pcs） | 8 |
Charge Working Temperature（℃） | 0～45 |
DisCharge Working Temperature（℃） | -10～55 |
Storage Temperature（℃） | -10～35 |
Humidity | 0～95% (No Condensed Water) |
Altitude（m） | ＜2000 |
IP Rating | IP20 |
Warranty | 5 years |
Cycle life | 6000 |
Authentication Level | CE & TUV(IEC 62619, IEC 62040) UN3480 |
Cooling Type | Ambient Cooling |
Installation | Cabinet or Wall Mounting |
