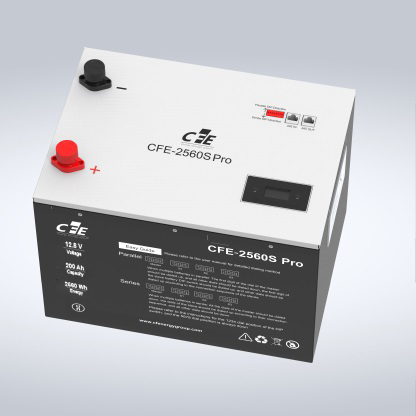

CFE 2560S Pro
1. Support 4 batteries connected in parallel.
2. Support external connections in series with voltage up to 51.2V.
3. Active balancing function between batteries, true parallel with RS485 communication.
4. Quick connection and insulation protection.
5. High-resolution, low-power OLED shows battery power & voltage, soft switch design.
6. Stainless steel handles, high durability, easy to carry, and guarantee 3000 fatigue tests.
7. Rugged stainless steel body with wonderful looking and durable.
Product Description
| Product parameters | |
Basic parameters | CFE 2560S Pro |
Nominal Voltage | 12.8V |
Nominal Capacity @1C | 200Ah |
Charge Voltage | 14.6V |
Charge Current Max Continuous | 50A |
Discharge Current Max Continuous | 100A |
Discharge Voltage Minimum | 10.4V |
Pulse Current 5 Sec | 125A |
Weight | 23.3kgs±0.5kgs |
Dimensions L*W*H | 360*260*250 mm |
Calendar Life & Performance Guarantee | a. 3500 cycles or 5 years , whichever comes first b. 1500 cycles or 2 years , whichever comes first |
Operating Temperature | Charging:0℃ to 45℃ / Discharging :-10℃ to 55℃ |
Storage Temperature | -10~35℃ |
Relative Humidity (R H) | 0% ~ 95% (No Condensed Water) |
Safety Certificate | CE( IEC 62040 ), MSDS |
Transportation Certificate | UN3480 |
