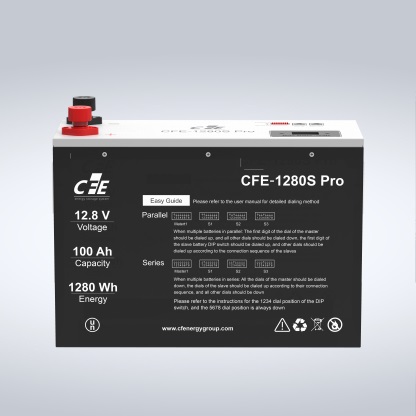

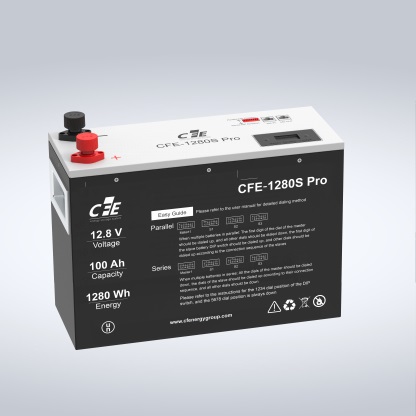

CFE 1280S Pro

1. Support 4 batteries connected in parallel.

2. Support external connections in series with voltage up to 51.2V.

3. Active balancing function between batteries, true parallel with RS485 communication.

4. Quick connection and insulation protection.

5. High-resolution, low-power OLED shows battery power & voltage, soft switch design.

6. Stainless steel handles, high durability, easy to carry, and guarantee 3000 fatigue tests.

7. Rugged stainless steel body with wonderful looking and durable.

Product Description

Product parameters

Basic parameters

CFE 1280S Pro

Nominal Voltage

12.8V

Nominal Capacity @1C

100Ah

Charge Voltage

14.6V

Charge Current Max Continuous

50A

Discharge Current Max Continuous

100A

Discharge Voltage Minimum

10.4V

Pulse Current 5 Sec

125A

Weight

13.4kgs±0.5kgs

Dimensions L*W*H

360*140*250 mm

Calendar Life & Performance Guarantee

3500 / 1500 cycles or 5 / 2years , whichever comes first

Operating Temperature

Charging:0℃ to 45℃ / Discharging :-10℃ to 55℃

Storage Temperature

-10~35℃

Relative Humidity (R H)

0% ~ 95% (No Condensed Water)

Safety Certificate

CE( IEC 62040 ), MSDS

Transportation Certificate

UN3480
