1.High reliability:
Combined with vehicle and energy storage design, combined with system accumulation to improve FMEA analysis, rock-solid performance, effectively guarantee long time operation
2.High security:
Complete fault detection. For example, the voltage is broken, temperature is abnormal, and balance is abnormal. If an exception occurs, alarm is generated and handled in time to ensure failure safety
3.Low maintenance cost:
With intelligent address allocation function, no manual setting is required, greatly reducing the maintenance cost of slave control
4.Full-time balancing strategy:
Advanced full-time balancing strategy, effectively control cell inconsistency
Product Parameters | |

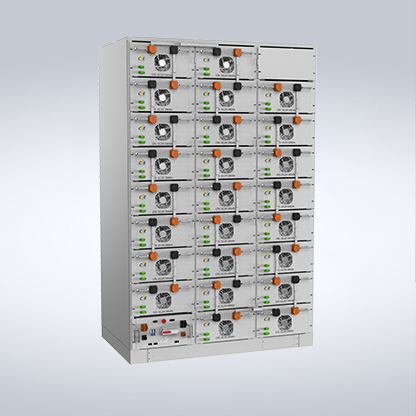

Basic Parameters | Air Cooling 372KWh |
PACK | |
Series and Parallel | 1P16S |
capacity | 280Ah |
Rated voltage | 51.2V |
Charge cut-off voltage | 58.4V |
Discharge cut-off voltage | 44.8V |
Standard charge | 140A |
Standard discharge | 140A |
Weight | 110kgs |
Size | 426*750*236(mm) |
Electricity | 14.33kWh |
Rack | |
Series and parallel | 1P416S |
Capacity | 280Ah |
Rated voltage | 1331.2V |
Charge cut-off voltage | 1497.6V |
Discharge cut-off voltage | 1164.8V |
Standard charge | 0.5C |
Standard discharge | 0.5C |
Weight | 3400kgs |
Size | 1021*1180*2554(mm) |
Cooling method | forced air cooling |
Electricity | 372.736kWh |
