1.Fast installation
2.High energy density
3.All in one design
4.Display and APP
5.Expandable to 80 kW
| Product parameters | |
|
Basic parameters |

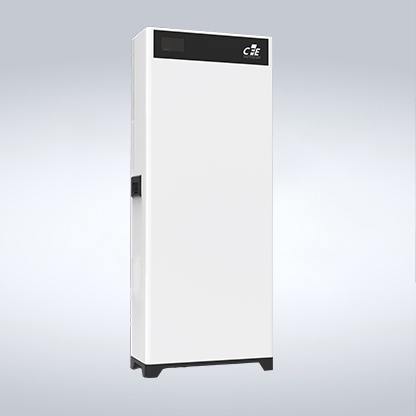

CFE Power Stream 20 |
|
Max. input Power |
6000W |
|
Max. DC Voltage |
580 Vd.c |
|
Max. short circuit current |
14/14Ad.c |
|
MPPT voltage range |
125~550Vd.c |
|
Max. input current |
11/11Ad.c |
|
MPPT input channels
|
2 |
|
Battery Type |
LiFePO4 |
|
Energy |
20kWh |
|
Apparent power |
5000VA |
|
Voltage |
220/230Va.c |
|
Max.current |
22.8Aa.c |
|
Frequency |
50/60Hz |
|
Apparent power |
5000VA |
|
Voltage |
220/230Va.c |
|
Max. input/output current |
22.8Aa.c |
|
Frequency |
50/60Hz |
|
Power factor |
0.8cap~0.8ind |
|
Overvoltage category |
Ⅱ（ DC ） ; Ⅲ（ AC ） |
|
Working temperature range |
-10 ℃ ~+45 ℃ |
|
Security Level |
CLASS Ⅰ |
|
IP Level |
IP65 |
|
Size(W*H*D) |
540*1415*250mm |
