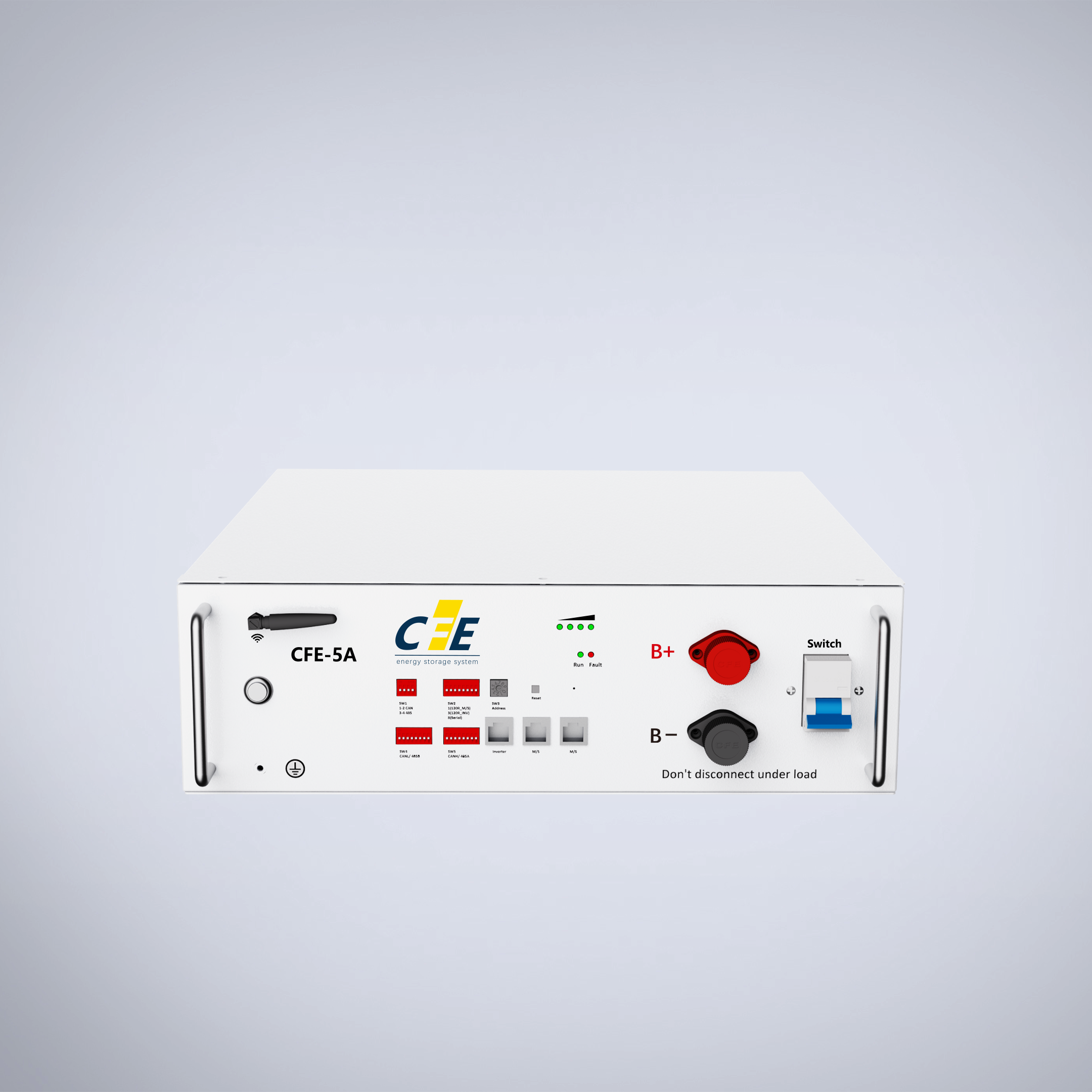

CFE-5A
1.Safety :
LFP(Lithium ion Phosphate) the highest safety
2.Up to 8 Parallel :
Flexible to increase voltage capacity without any other equipments or settings3.Cycle Life :
80% of initial capacity after 6000
4.Installation :
Simple buckle fixing minimize the installation time and cost
5.High-precision SOC :
Accurate sampling of voltage and current SOC mathematic more accurate and never jump
Product Description
| Product Parameters | |
Basic Parameters | CFE 5A |
Nominal Voltage（V） | 51.2 |
Nominal Capacity（Wh） | 5120 |
Usable Capacity（Wh） | 4352 |
Dimension（mm） | 442*500*133 |
Weight（Kgs） | 45±0.5 |
Charge/Discharge Current（A） | 50/100(Recommend) |
Communication Port | CAN / RS485 |
Parallel or Series Support | 8 Parallel |
Charge Working Temperature（℃） | 0～45 |
DisCharge Working Temperature（℃） | -10～55 |
Storage Temperature（℃） | -10～35 |
Humidity | 0～95% (No Condensed Water) |
Altitude（m） | ＜2000 |
IP Rating | IP20 |
Warranty | 5 years |
Color | White |
Authentication Level | UN3480 |
Cooling Type | Ambient Cooling |
Installation | Cabinet, Wall Mounting, Ground Installation |
